3 Rail Picture Frame Fence
The 3 rail picture frame adds a third horizontal rail and matching trim for extra rigidity and a distinctive craftsman profile. Built in #1 grade cedar and planned with Fence Genius, it delivers a premium, long‑lasting privacy fence.
Popular Upgrade to Picture Frame
Why homeowners choose 3 rail picture frame
- Extra rail increases panel rigidity and durability over time.
- Third trim board mirrors the rail layout for a balanced craftsman aesthetic.
- Cedar construction excels in the Pacific Northwest climate.
- Fence Genius planning delivers precise grade-following panels and clean top lines.
How we build 3 rail picture frame (our standard)
- Three 2x4 rails, screwed directly into the posts.
- Trim that frames each panel with an added third trim to complement the third rail.
- Top 2x4 cap for a finished profile.
- Standard posts: 4.125" x 4.125" x 9' set approximately 2' deep with ~180 lbs of properly mixed concrete.
- Stainless steel fasteners standard to prevent corrosion and black streaking.
Pricing is available in our Virtual Quote Tool with your exact measurements.
3 Rail Picture Frame Fence Gallery
See the strength and craftsmanship of our 3 rail picture frame fences with enhanced structural design.

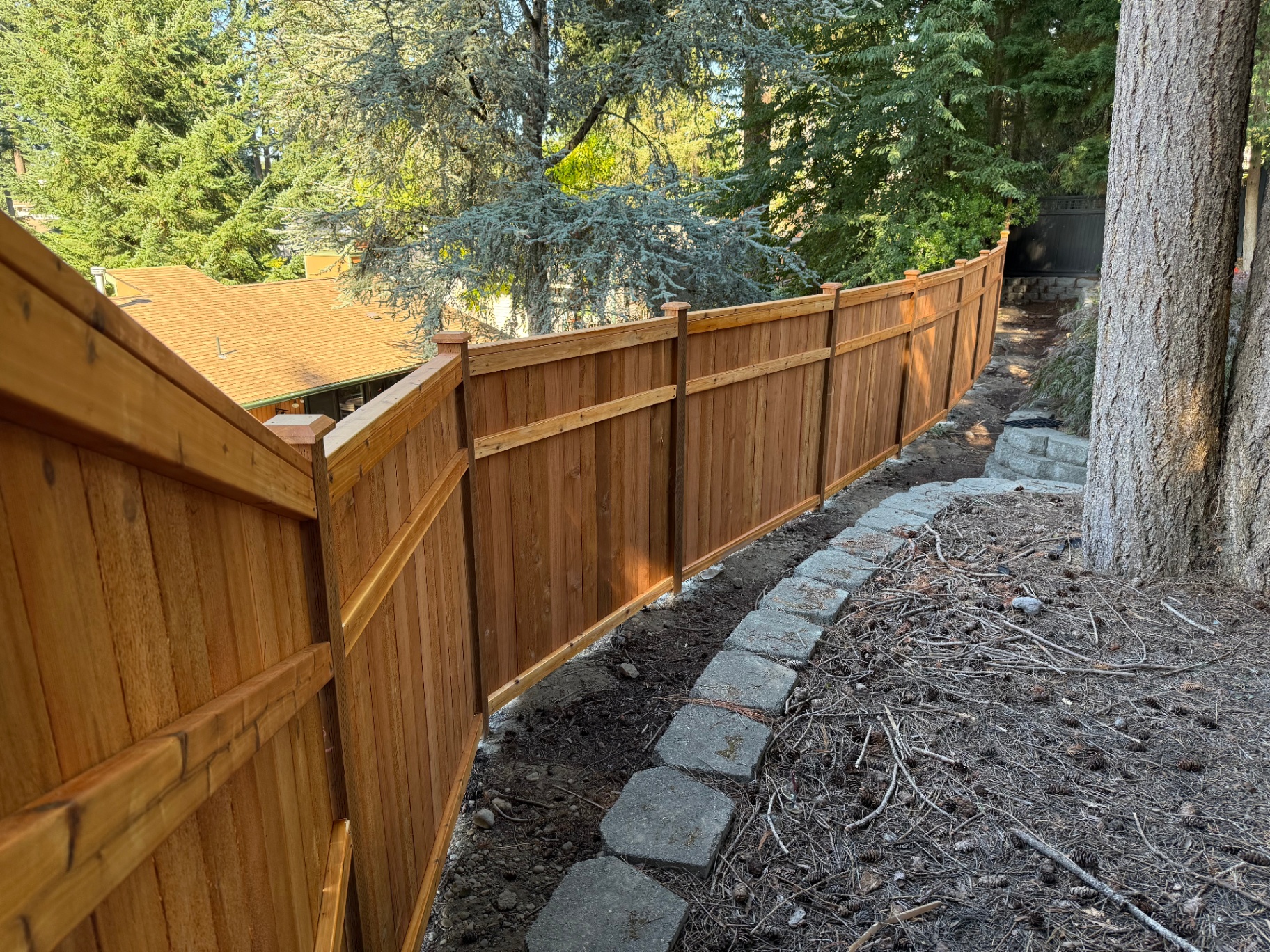

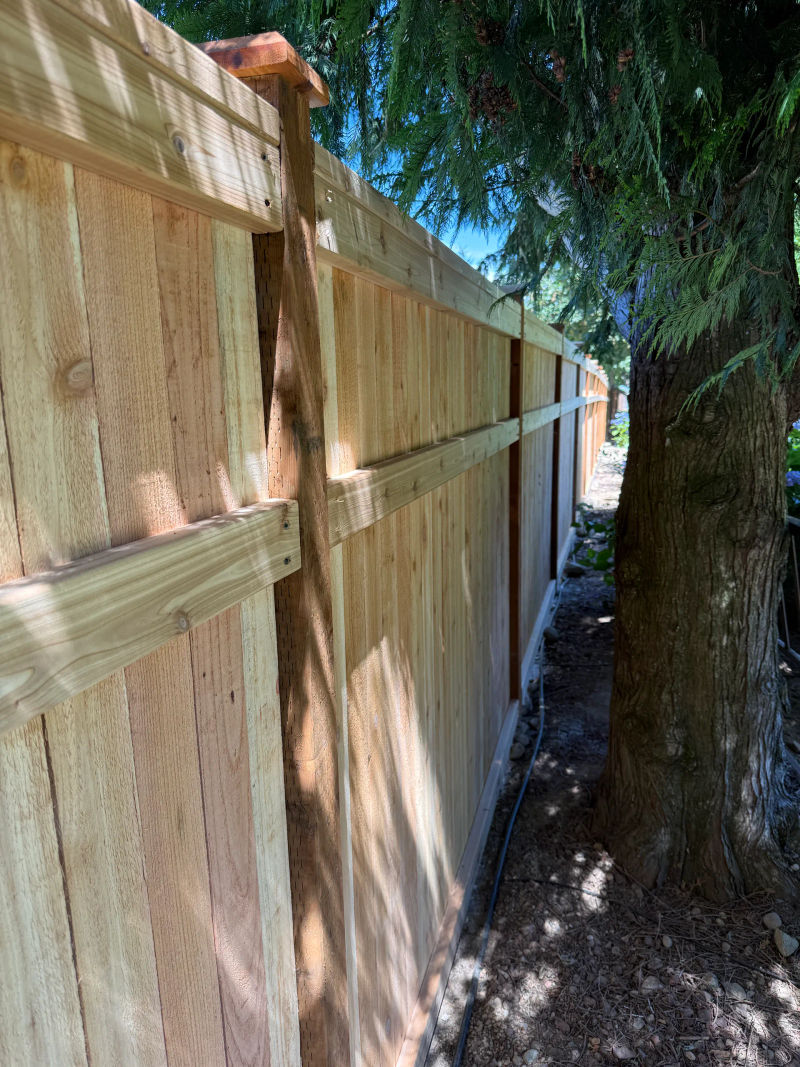

3 rail picture frame fence following terrain in Seattle

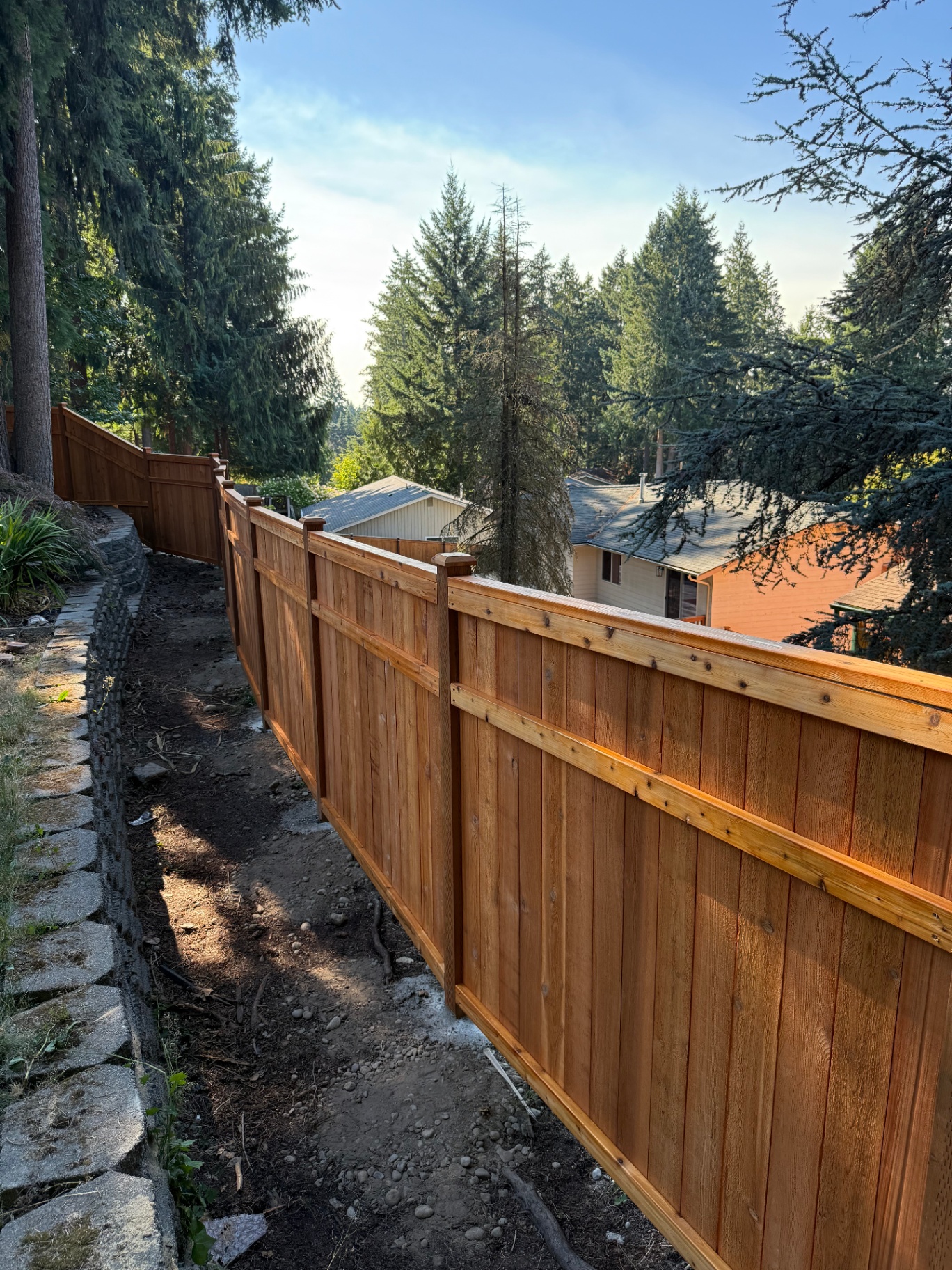

Cedar 3 rail picture frame fence with craftsman look
Three rail picture frame fence with stepped grade

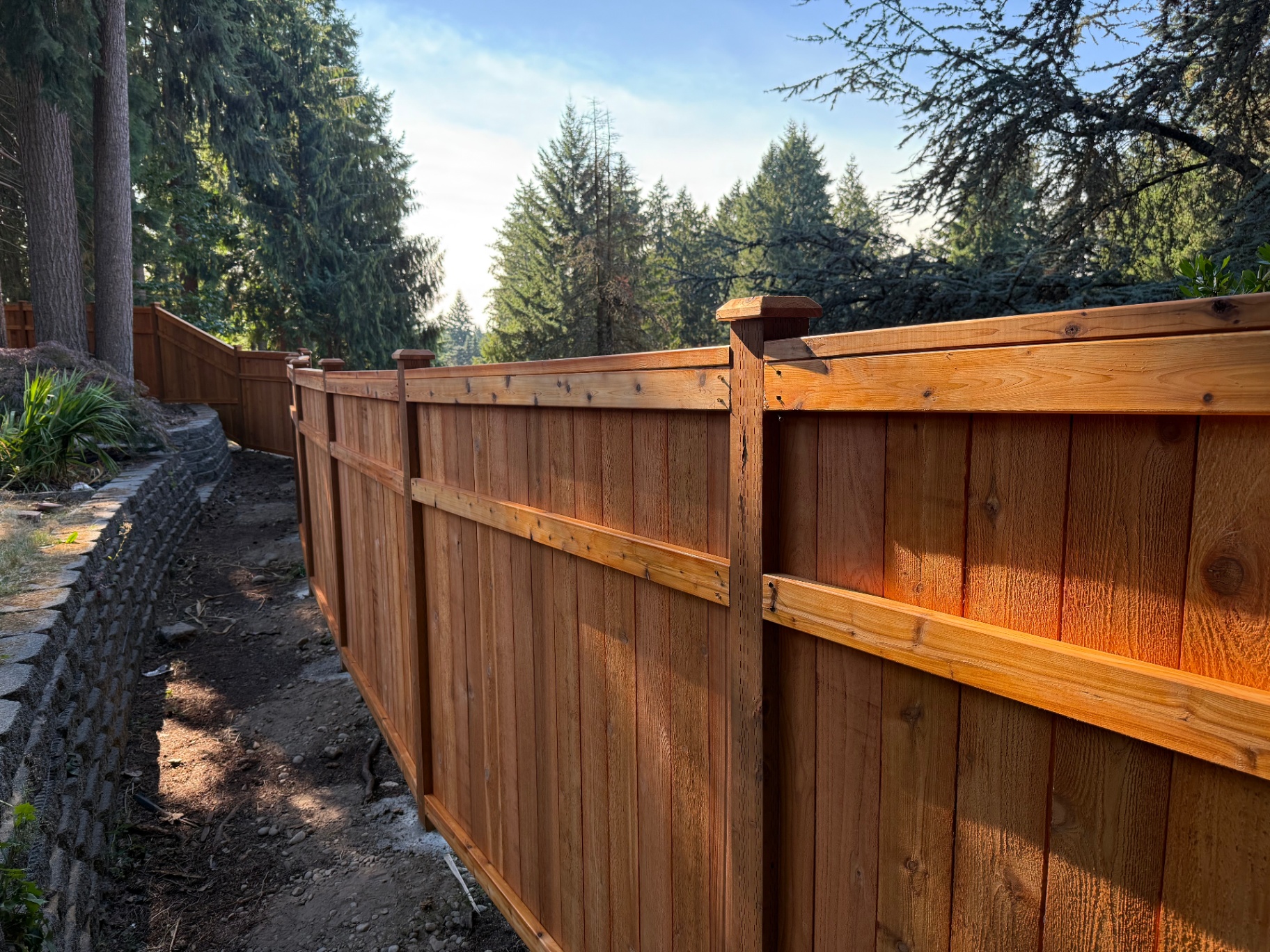

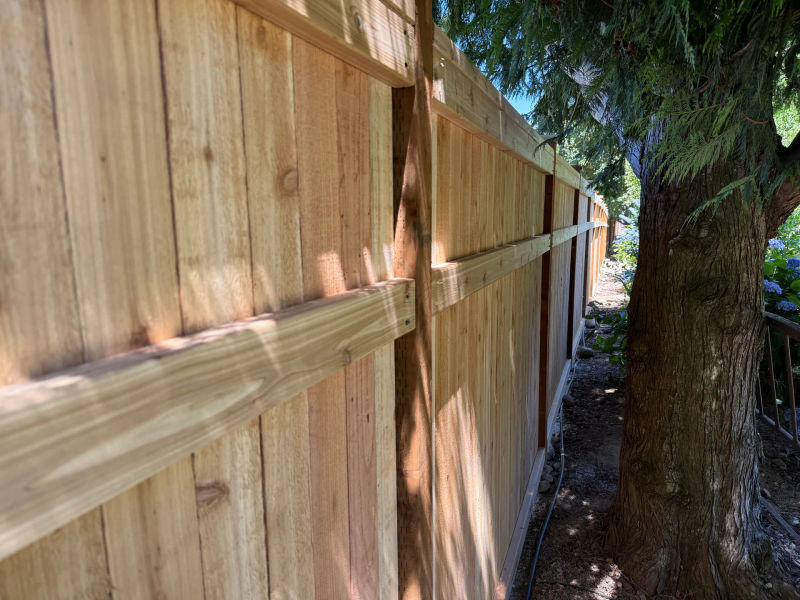

Close-up of 3 rail picture frame fence rails and trim

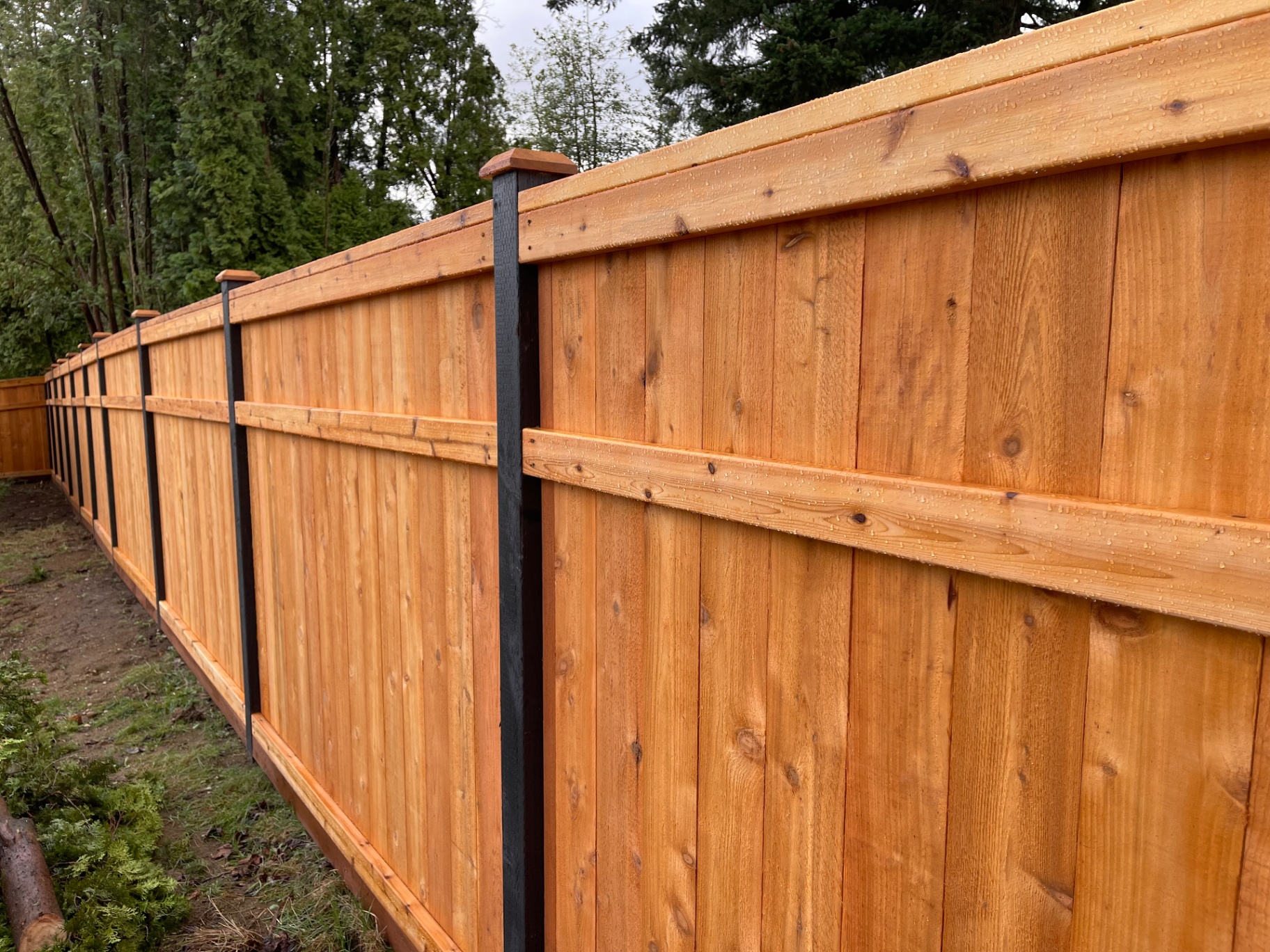

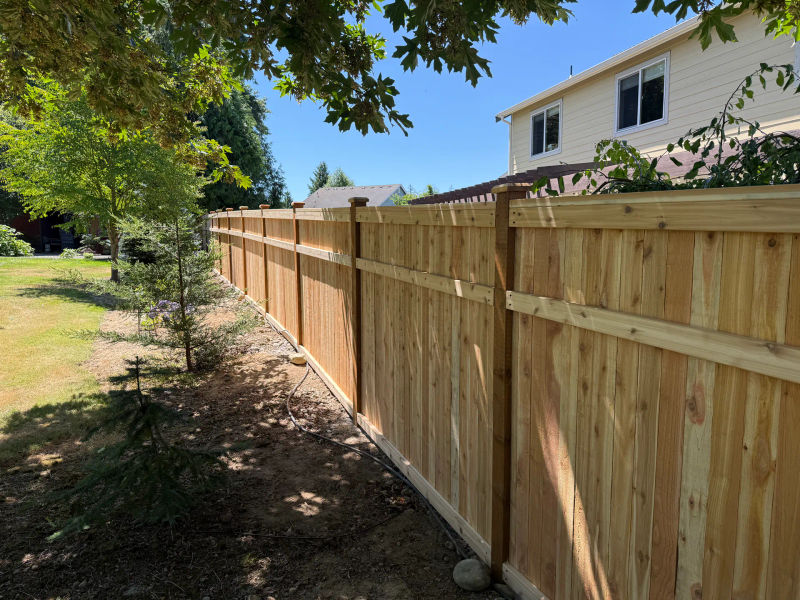

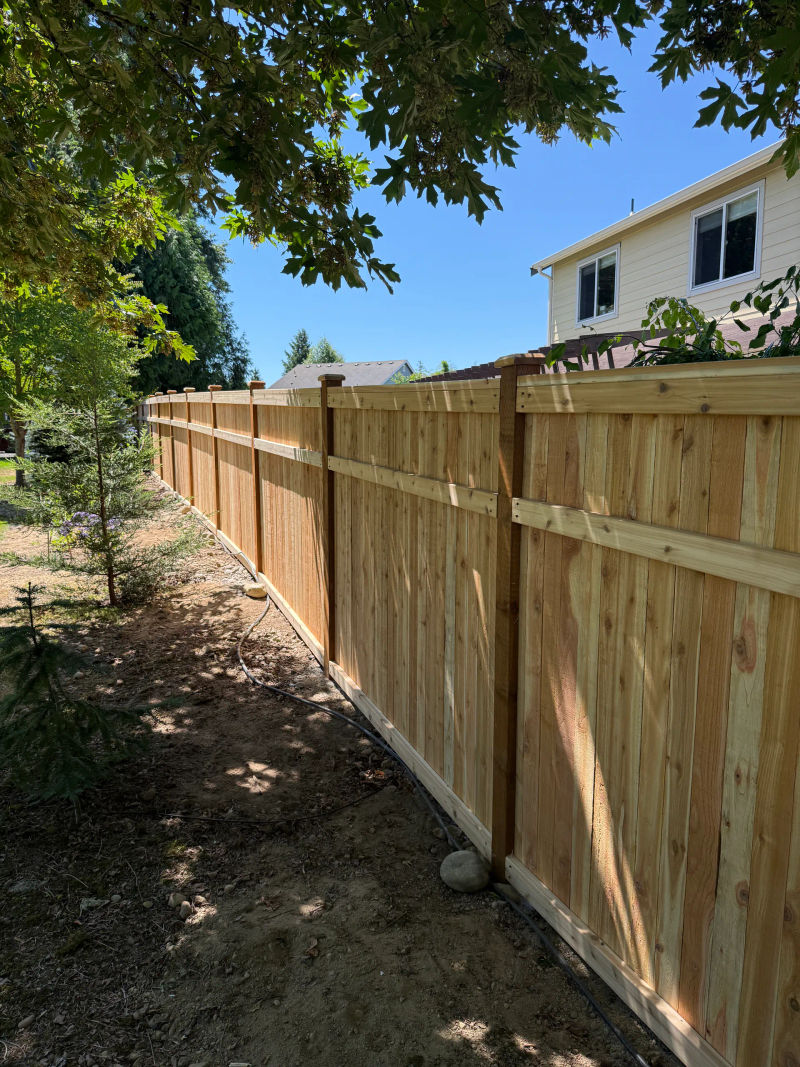

Long run of cedar 3-rail picture frame fence in Seattle

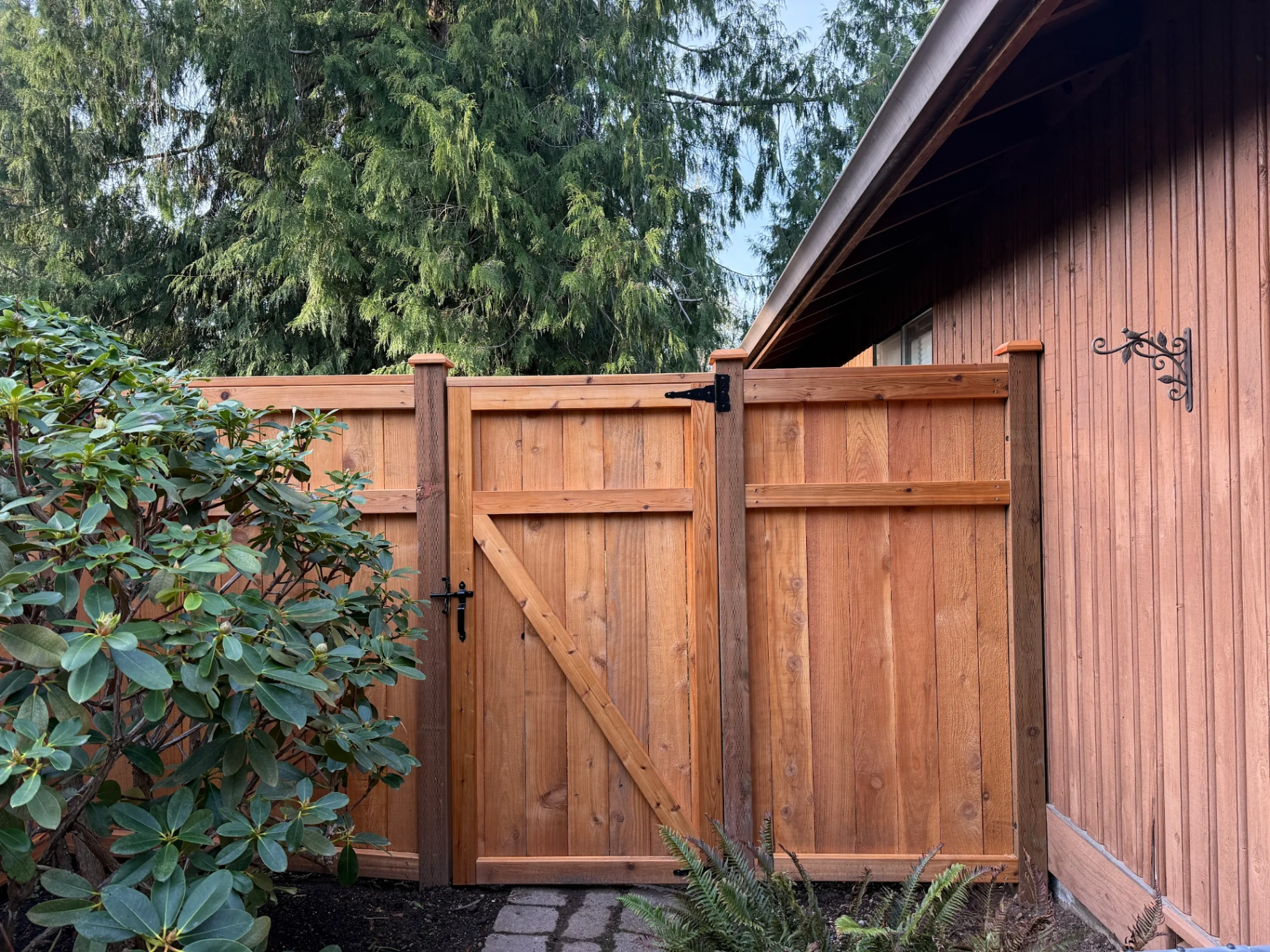

Cedar gate in matching 3-rail picture frame style

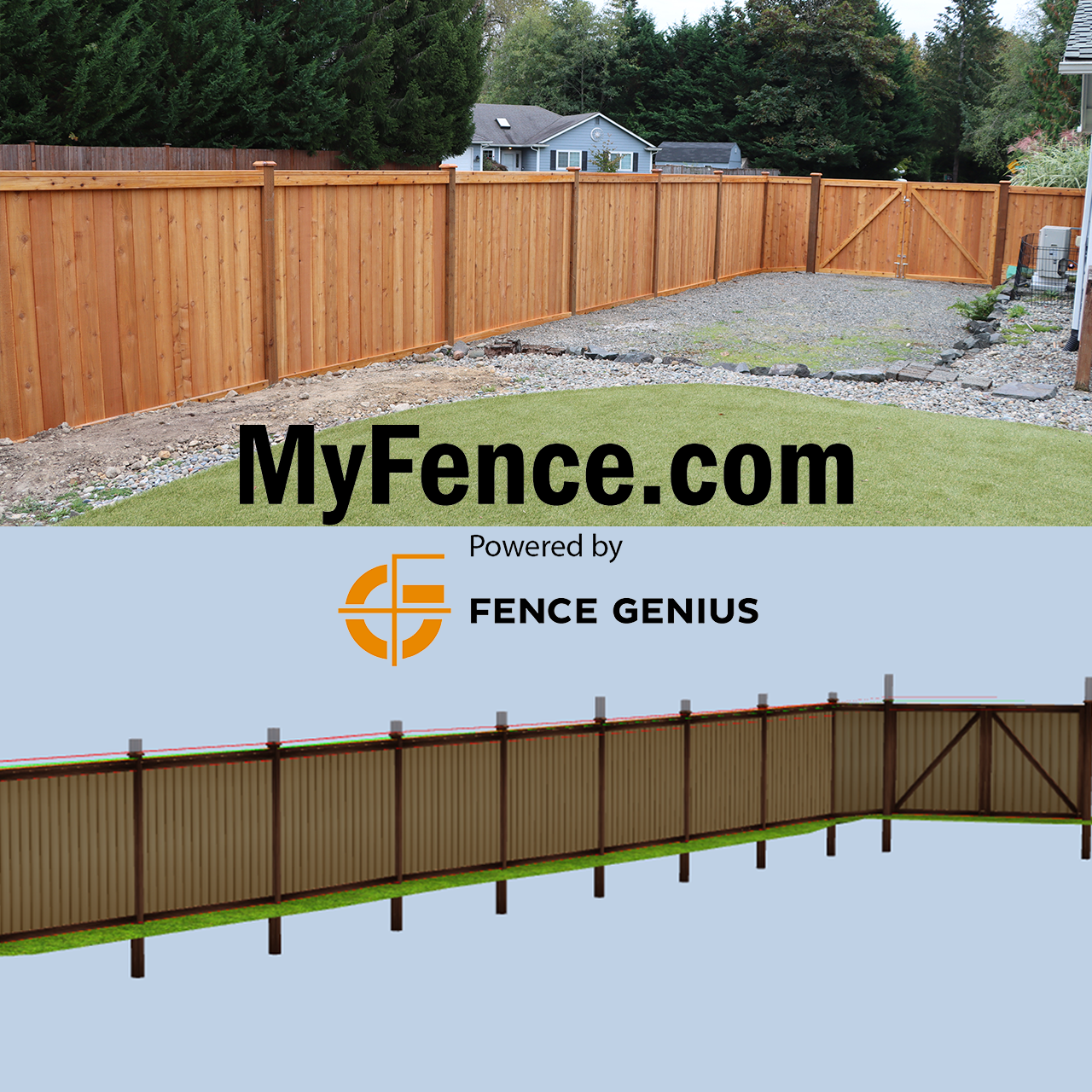

Fence Genius planning for 3 rail designs
- Set new posts first to establish a stable baseline.
- Capture post-to-post measurements, usable post height, grade change, and angles.
- Panels are optimized to follow the ground at both top and bottom for a clean, consistent look.
Key specs
| Spec | Standard |
|---|---|
| Posts | 4.125" x 4.125" x 9' set approximately 2' deep with ~180 lbs properly mixed concrete |
| Rails | Three 2x4 rails, screwed directly into posts |
| Pickets | #1 grade cedar (clear cedar upgrade available) |
| Cap/Trim | Top 2x4 cap; additional trim to complement the third rail |
| Fasteners | Stainless fasteners to prevent corrosion/black streaking |
| Gates | Matching single/double gates; heavy-duty hardware |
| Heights | Available: 4', 5', 6', 8' |
Options & upgrades

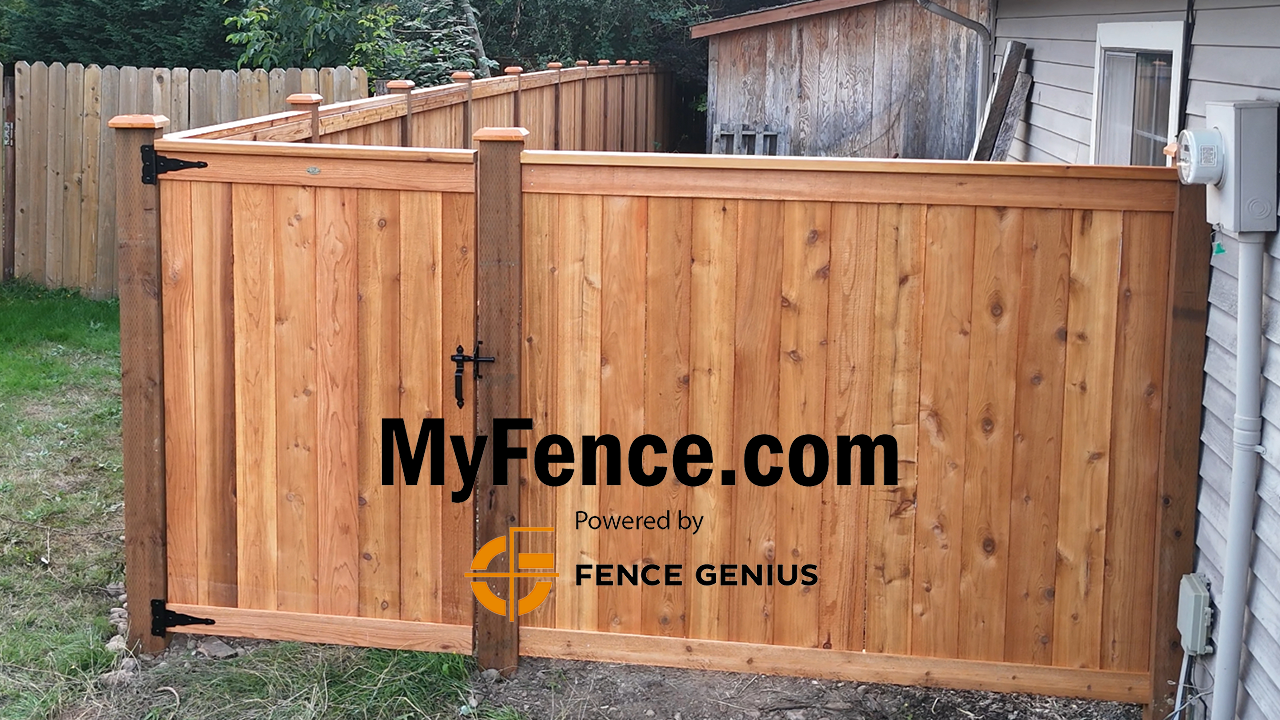

Gates & hardware
3 Rail Picture Frame FAQs
Is this stronger than standard picture frame?
Yes, the added rail improves rigidity and helps long runs stay straighter over time.
Can I combine with board‑on‑board or rot board?
Absolutely. These upgrades pair nicely with the 3 rail layout and enhance privacy and durability.
How do I see cost?
Use our Virtual Quote Tool for an instant estimate based on your property and measurements.
Use our virtual tool to estimate your 3 Rail Picture Frame Fence costs for your property
Get real-time pricing for your 3 Rail Picture Frame Fence project with our interactive quote tool.
If the tool doesn't load, open it in a new tab: seattlefencequote.com
